Digital Controller TTM-210 Series

Digital Controller TTM-210 Series

With the adoption of the new PID algorithm, the controllability has been improved.
Adopted white LCD (with LED backlight) for PV (measured value) display for improved visibility.
With universal input function, a single unit can handle all input specifications.
Compact in size with the depth of 59.7 mm (TTM-214) and 65 mm (TTM-215/217/219).
The optional functions have been enhanced to support various applications.
Loader communication function that can reduce complicated parameter setting work is equipped as standard. (Exclusive cable is available with a charge).
External standards “UL”, “CUL” and “CE” approved (TTM-215/217/219 Pending application). Compliant with "IP66" or equivalent. Also, six substances regulated by the RoHS Directive are not used.

Paperless Recorder TRM-00J

Paperless Recorder TRM-00J

This is a 6-Channel Paperless Recorder that displays measured data on a liquid crystal display and can easily be operated using a touch panel.
Data can be saved to USB memory or SD card, and the saved data can be played back.
The input type is Universal Input such as "thermocouple", "RTD", "DC voltage", "DC current (shunt resistance required)".
The communication function "RS-485 (Modbus) / USB 2.0 (Modbus)" is equipped as standard.

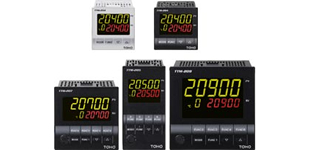

Digital Controller TTM200 Series

Digital Controller TTM200 series

"Improved controllability is offered with a new PID algorithm and accelerated sampling (with a shortened interval of 200 ms).
Due to multi-input capabilities, a single unit handles all input specifications. The series is more compact in size, with a depth of 55mm (TTM-204) and 65mm (TTM-205/207/209). The enhanced optical functions support any application. The loader communication function is included, alleviating additional work that might be needed to set various parameters, (the dedicated cable must be purchased separately)."

Paperless Recorder TRM20A

Paperless Recorder TRM20A

This paperless recorder displays the measured data on a liquid crystal display and can easily be operated using a touch panel. Data can be saved in a SD memory card, and the saved data can be played back. It can also be played back on a personal computer using the attached viewer software. Input type is universal input such as "thermocouple", "RTD", "DC voltage (current)".
6, 9 and 12 channels are available as number of measurement channels.

<A New Addition of Modbus Master Writing Function>
The recorder (TRM-20A) can be used as the master, and up to 24 compatible devices can be connected under it.

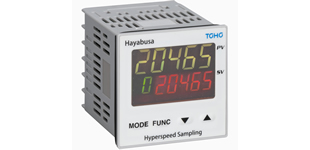

Digital Controller TTM-204-Z65/Z74

Digital Controller TTM-204-Z65/Z74

* Digital controller that inherits the basic specifications of TTM-204.
* Sampling cycle is 10mS and suitable for fast changing control.
10, 20, 50, 100, 200, and 500 mS can be selected.
* PV color can be set to green, red, orange, blue, light blue, purple, white and original PV display color (custom).
* The PV display color can be set to an arbitrary color depending on the temperature band and at the time of PV event and PV / CT / loop abnormality.
* "Temperature input (Z65)" and "Analog input (Z74)" are available as input types.
* Depth is 55mm and compact size.

Hybrid Recorder TRM10C

Hybrid Recorder TRM10C

A Hybrid recorder with a chart width of 100mm which adopted a large digital display in a complete pursuit of cost performance with the motto of "Smaller and Easier" for excellent reliability. The front door is IP65 compliant for excellent dustproof and waterproof. 6-Point, 1 pen and 2 pen types are available as number of measurement channels.

Digital Controller TTM000W Series

Digital Controller TTM000W Series

Visibility had been improved by adopting white LED for PV color. A versatile Digital Temperature Controller which features a variety of functions and is easy to operate. It is compact in size, with a depth of only 77mm. (A depth of TTM-002W is 97mm.) Size ranges from 24x48 to 96x96. If the communication option is selected, up to 31 controller units can be connected with a single computer at the same time, allowing centralized supervision within a max. distance of 500m.

Dual Channel Controller TTX-800

Dual Channel Controller TTX-800

A white LED is used for better visibility. It is a DIN rail mounting type 2ch controller with display and key switch mounted on the main unit, various settings are possible with the main unit alone.
By connecting the main unit with a connector, the power supply and RS-485 communication can be connected without the need for crossover wiring of the terminal block. (Up to 10 units can be connected)
* If the analog is selected for input / output, it can be used as a signal converter. "CE" mark as an external standard has been acquired.

Digital Controller TTM-i4N

Digital Controller TTM-i4N

This versatile series of digital controllers supports wide range of applications.
Easy operation at reasonable price.
UL, CE and KC approved, and compliant with the RoHS directive.

Dual Channel Controller TTM-509

Dual Channel Controller TTM-509

Capable of controlling 2 inputs maximum per unit. This device offers versatile features, high accuracy ±0.1% and a high speed sampling cycle 50msec, enabling support for a wide range of applications.

Program Controller TTM-339

Program Controller TTM-339

TTM 339 is LCD Program Controller with maximum of 15 patterns & 99 steps. The Full Multi-Function Input support various types of input requirements within a single unit. The device is compact, with a depth of only 65mm. A loader communication function is provided as its standard feature to ease complicated work with setting parameters that is common for program controllers, (the cable is sold separately). The necessary software can be downloaded from our webpage.

Program Controller TTM-P4/P9

Program Controller TTM-P4/P9

Simple! Easy! Reasonably priced! A maximum of 64 patterns and steps are supported. Standard features include time signal/alarm output, RUN signal output and DI (RUN signal input). These devices support the UL, cUL as well as the RoHS directives.

Digital Indicator TRM-006A

Digital Indicator TRM-006A

This indicator has basic functions inherited from TRM-006 and some additional functions derived from TTM-000 series. It can also be used as a centralized monitoring unit or alarm unit due to its communication function. It is also equipped with a power supply unit for sensors. It has functions of peak-bottom hold indication, 2 lines of independent contact output, and other similar capabilities.

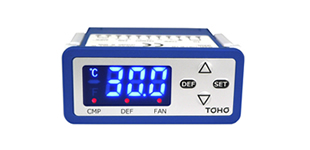

Freezer Controller TTM-C30

Freezer Controller TTM-C30

* Freezer dedicated controller with compact body (Dimension: 76 X 34mm).
* Blue LED color display for clear visibility.
* 3-point extensive output (Defrost Function Output, Compressor Control Output, Fan Control Output).
* Equipped with monitoring function (Anomalous Occurrence, Built-in Safety Circuit).
* Broad temperature setting indication range (-40.0℃ to +99.9℃).
* Inclusive of 1 pc. thermistor sensor.
* CE-marking compliant, RoHS compliant.

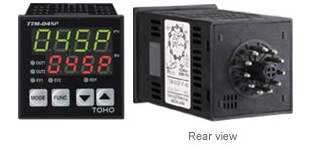

Plug-in Digital Temperature Controller
TTM-04SP

Plug-in Digital Temperature Controller TTM-04SP

Improved controllability is provided employing a new PID algorithm and an accelerated sampling cycle. Due to a multi-input function, a single unit handles all input specifications. It is more compact in size with the depth of 69mm (front panel is 48mm x 48mm). The loader communication function is included, alleviating additional work that might be needed to set various parameters (Dedicated cable is sold separately).

Board Type Digital Controller
TTM-00BT

Board Type Digital Controller TTM-00BT

With the TTM-00BT digital controller, it is possible to operate 8 points of temperature control with one board. Both RS-232C and RS-485 are equipped for data communication with host computers. Notably, 8 points of current detector (CT) input & 1 voltage input are standard, as well as 11 points of event output (Open Collector). Event output can be used as the cooling output (Under specific conditions condition).

Board Type Digital Controller
TTM-00BW

Board Type Digital Controller TTM-00BW

It is a Digital Board Type Temperature Controller with TTM-004W functionality.
How can we make a small board type temperature controller?
TTM-00BW is our proposed answer. Indeed, it fits into a small space.
Display boards can also be manufactured with customer original specifications.
Minimum order quantity: 50 units

Thermometer With Electronic Paper Display TRA-700

Thermometer With Electronic Paper Display TRA-700

TRA-700 is a thermometer with an electronic paper display that can replace the mercury thermometer.
It is a countermeasure product to comply with the prohibition of manufacturing products using mercury at the end of 2020 and onward. It can be used for various industrial applications such as ship engine exhaust gas measurement.

Thyristor-type Single-phase Power Regulator TRV1-M/V

Thyristor-type Single-phase Power Regulator TRV1-M/V

TRV1-M/V can display the input value, the output value, and the parameters by 7 segments LED, and support various function settings by the front key operation.

Thyristor-type Single-phase Power Regulator TRV1-C/PW

Thyristor-type Single-phase Power Regulator TRV1-C/PW

TRV1-C/PW are miniaturized power regulator which enables high density mounting that realized reasonable pricing.
This regulator performs cycle and phase control by analog input signal and external volume.

Solid State Relay TRS1225

Solid State Relay TRS1225

Maximum load current: 25A
The available current differs depending on the ambient temperature.
Connection method: M4 free terminal screw

Solid State Relay TRS1245

Solid State Relay TRS1245

Maximum load current: 45A
The available current differs depending on the ambient temperature.
Connection method: M4 free terminal screw

Solid State Relay TRS5225

Solid State Relay TRS5225

Maximum load current: 25A
The available current differs depending on the ambient temperature.
Connection method: Faston terminal

Heat Sink TRH-070/100/150/200

Heat Sink TRH Series TRH-070/100/150/200

Model: TRH-070, TRH-100, TRH-150, TRH-200
A component that is attached to a heat-generating electrical component (SSR) to reduce the temperature of the electrical component (SSR) itself by dissipating heat.

Solid State Relay TRS7210

Solid State Relay TRS7210

Since it is an electrical ON/OFF signal type, unlike the relay type, it lasts for a life time.
It is a heat sink integrated type, so it is not necessary to prepare a heat sink separately.

Solid State Relay TRS7220

Solid State Relay TRS7220

Since it is an electrical ON/OFF signal type, unlike the relay type, it lasts for a life time.
It is a heat sink integrated type, so it is not necessary to prepare a heat sink separately.

Solid State Relay TRS7240

Solid State Relay TRS7240

Since it is an electrical ON/OFF signal type, unlike the relay type, it lasts for a life time.
It is a heat sink integrated type, so it is not necessary to prepare a heat sink separately.

Solid State Relay TRS7260

Solid State Relay TRS7260

Since it is an electrical ON/OFF signal type, unlike the relay type, it lasts for a life time.
It is a heat sink integrated type, so it is not necessary to prepare a heat sink separately.

Peltier Relay TRT-2416

Peltier Relay TRT-2416

This unit is a relay module with built-in CPU, and by simply connecting the unit to the external DC power source, it changes the direction of the drive current flow to the Peltier module in response to the signal of heating/cooling control (SSR drive voltage output) from the temperature controller.
The external DC power source (for this relay and Peltier module drive) is separately needed.
Maximum load current: 16A (Ambient temperature 0 to 50 ℃)
