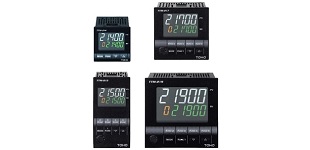

Digital Controller TTM-210 Series
With the adoption of the new PID algorithm, the controllability has been improved.
Adopted white LCD (with LED backlight) for PV (measured value) display for improved visibility.
With universal input function, a single unit can handle all input specifications.
Compact in size with the depth of 59.7 mm (TTM-214) and 65 mm (TTM-215/217/219).
The optional functions have been enhanced to support various applications.
Loader communication function that can reduce complicated parameter setting work is equipped as standard. (Exclusive cable is available with a charge).
External standards “UL”, “CUL”, “CE” and “UKCA” approved(TTM-215/217/219 Pending application). Compliant with "IP66" or equivalent. Also, six substances regulated by the RoHS Directive are not used.

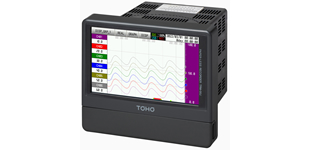

Paperless Recorder TRM-00J
This is a 6-Channel Paperless Recorder that displays measured data on a liquid crystal display and can easily be operated using a touch panel.
Data can be saved to USB memory or SD card, and the saved data can be played back.
The input type is Universal Input such as "thermocouple", "RTD", "DC voltage", "DC current (shunt resistance required)".
The communication function "RS-485 (Modbus) / USB 2.0 (Modbus)" is equipped as standard.
<Improved Version with Newly Added Functions>
・Data can be input from external devices that have a Modbus master function such as PLC and touch panel.
・The recorder can be used as a communication master to record data values on the slave side.
* Please refer here (the attached sheet) for details on the added functions.
* Support shall start from shipments after October 14, 2021.

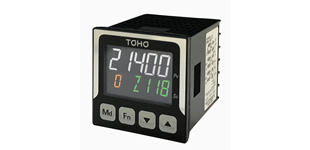

Digital Controller TTM-214-Z118/Z119
* A Digital Controller that inherits the basic specifications of TTM-214.
* "Temperature Input (Z118)" and "Analog Input (Z119)" are also available as input types.
* The external dimensions are compact with a length of 48 mm, a width of 48 mm, and a depth of 59.7 mm.
* A High-Speed Sampling Cycle at 10 mS (0.01 seconds), which is suitable for high-speed change control.
* Selectable from 10mS to 500mS
* New Method Auto Tuning (calculate PID parameters that can cover a wide band)
* Industry's highest 16-Point Correction Function (flexibly supports non-linear sensor output)
* Event Output Counter (monitor display for event output ON time)
* Simplified Program Control Function (program operation up to 8-steps program control)
* Liquid Crystal Display (LCD with excellent visibility, high brightness white display)

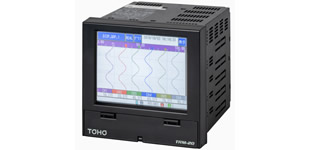

Paperless Recorder TRM20A
This paperless recorder displays the measured data on a liquid crystal display and can easily be operated using a touch panel. Data can be saved in a SD memory card, and the saved data can be played back. It can also be played back on a personal computer using the attached viewer software. Input type is universal input such as "thermocouple", "RTD", "DC voltage (current)".
6, 9 and 12 channels are available as number of measurement channels.
<A New Addition of Modbus Master Writing Function>
The recorder (TRM-20A) can be used as the master, and up to 24 compatible devices can be connected under it.
Digital Controller TTM000W Series
Visibility had been improved by adopting white LED for PV color. A versatile Digital Temperature Controller which features a variety of functions and is easy to operate. It is compact in size, with a depth of only 77mm. (A depth of TTM-002W is 97mm.) Size ranges from 24x48 to 96x96. If the communication option is selected, up to 31 controller units can be connected with a single computer at the same time, allowing centralized supervision within a max. distance of 500m.

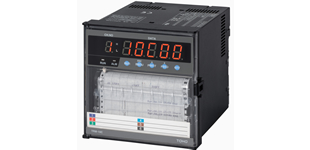

Hybrid Recorder TRM10C
A Hybrid recorder with a chart width of 100mm which adopted a large digital display in a complete pursuit of cost performance with the motto of "Smaller and Easier" for excellent reliability. The front door is IP65 compliant for excellent dustproof and waterproof. 6-Point, 1 pen and 2 pen types are available as number of measurement channels.

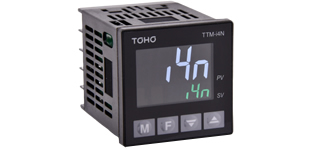

Digital Controller TTM-i4N
This versatile series of digital controllers supports wide range of applications.
Easy operation at reasonable price.
UL, CE and KC approved, and compliant with the RoHS directive.

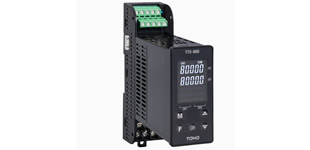

Dual Channel Controller TTX-800
A white LED is used for better visibility.
It is a DIN rail mounting type 2ch controller with display and key switch mounted on the main unit, various settings are possible with the main unit alone.
By connecting the main unit with a connector, the power supply and RS-485 communication can be connected without the need for crossover wiring of the terminal block. (Up to 10 units can be connected)
* If the analog is selected for input / output, it can be used as a signal converter.

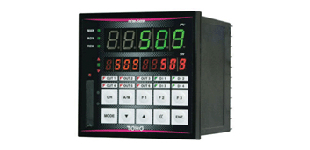

Dual Channel Controller TTM-509
Capable of controlling 2 inputs maximum per unit. This device offers versatile features, high accuracy ±0.1% and a high speed sampling cycle 50msec, enabling support for a wide range of applications.
Program Controller TTM-P4W
* Dimension: 48 x 48 mm
* Programmable up to "Steps x Patterns = 64"
* Standard Functions
①Event Output 1 or Time Signal
②Control Output 2, Event Output 2
or Run Signal Output
③DI(Run Singal Input)
* Conforms to CE marking

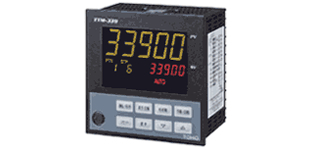

Program Controller TTM-339
TTM 339 is LCD Program Controller with maximum of 15 patterns & 99 steps. The Full Multi-Function Input support various types of input requirements within a single unit. The device is compact, with a depth of only 65mm. A loader communication function is provided as its standard feature to ease complicated work with setting parameters that is common for program controllers, (the cable is sold separately). The necessary software can be downloaded from our webpage.
Digital Indicator TRM-006A
This indicator has basic functions inherited from TRM-006 and some additional functions derived from TTM-000 series. It can also be used as a centralized monitoring unit or alarm unit due to its communication function. It is also equipped with a power supply unit for sensors. It has functions of peak-bottom hold indication, 2 lines of independent contact output, and other similar capabilities.

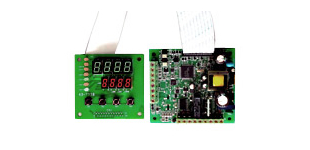

Board Type Digital Controller
TTM-00BW
It is a Digital Board Type Temperature Controller with TTM-004W functionality.
How can we make a small board type temperature controller?
TTM-00BW is our proposed answer. Indeed, it fits into a small space.
Display boards can also be manufactured with customer original specifications.
Minimum order quantity: 50 units

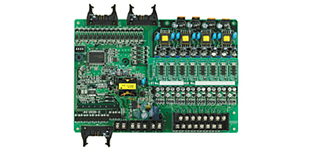

Board Type Digital Controller
TTM-00BT
With the TTM-00BT digital controller, it is possible to operate 8 points of temperature control with one board. Both RS-232C and RS-485 are equipped for data communication with host computers. Notably, 8 points of current detector (CT) input & 1 voltage input are standard, as well as 11 points of event output (Open Collector). Event output can be used as the cooling output (Under specific conditions condition).

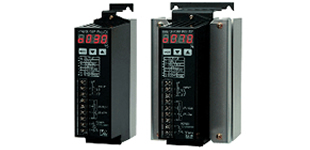

Thyristor-type Single-phase Power Regulator TRV1-M/V
TRV1-M/V can display the input value, the output value, and the parameters by 7 segments LED, and support various function settings by the front key operation.
Thyristor-type Single-phase Power Regulator TRV1-C/PW
TRV1-C/PW are miniaturized power regulator which enables high density mounting that realized reasonable pricing.
This regulator performs cycle and phase control by analog input signal and external volume.
Peltier Relay TRT-2416
This unit is a relay module with built-in CPU, and by simply connecting the unit to the external DC power source, it changes the direction of the drive current flow to the Peltier module in response to the signal of heating/cooling control (SSR drive voltage output) from the temperature controller.
The external DC power source (for this relay and Peltier module drive) is separately needed.
Maximum load current: 16A (Ambient temperature 0 to 50 ℃)
Solid State Relay TRS1225
Maximum load current: 25A
The available current differs depending on the ambient temperature.
Connection method: M4 free terminal screw

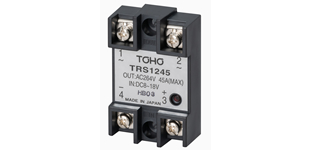

Solid State Relay TRS1245
Maximum load current: 45A
The available current differs depending on the ambient temperature.
Connection method: M4 free terminal screw

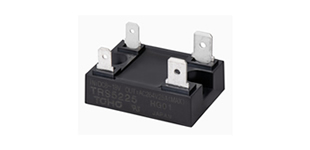

Solid State Relay TRS5225
Maximum load current: 25A
The available current differs depending on the ambient temperature.
Connection method: Faston terminal

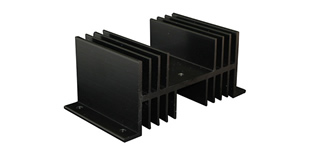

Heat Sink TRH-070/100/150/200
Model: TRH-070, TRH-100, TRH-150, TRH-200
A component that is attached to a heat-generating electrical component (SSR) to reduce the temperature of the electrical component (SSR) itself by dissipating heat.

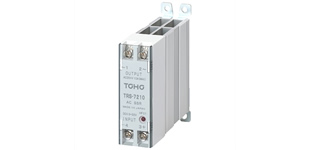

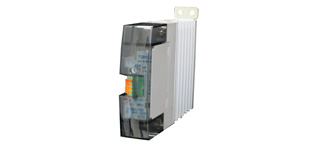

Solid State Relay TRS7210
Since it is an electrical ON/OFF signal type, unlike the relay type, it lasts for a life time.
It is a heat sink integrated type, so it is not necessary to prepare a heat sink separately.

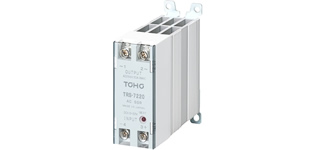

Solid State Relay TRS7220
Since it is an electrical ON/OFF signal type, unlike the relay type, it lasts for a life time.
It is a heat sink integrated type, so it is not necessary to prepare a heat sink separately.

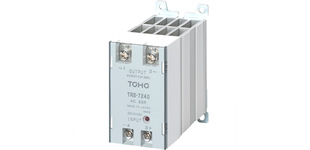

Solid State Relay TRS7240
Since it is an electrical ON/OFF signal type, unlike the relay type, it lasts for a life time.
It is a heat sink integrated type, so it is not necessary to prepare a heat sink separately.

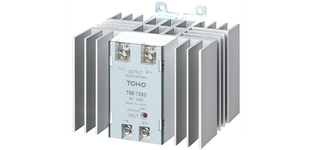

Solid State Relay TRS7260
Since it is an electrical ON/OFF signal type, unlike the relay type, it lasts for a life time.
It is a heat sink integrated type, so it is not necessary to prepare a heat sink separately.

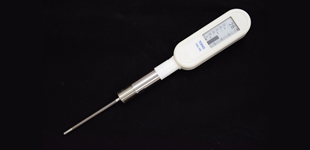

Thermometer With Electronic Paper Display TRA-700
TRA-700 is a thermometer with an electronic paper display that can replace the mercury thermometer.
It is a countermeasure product to comply with the prohibition of manufacturing products using mercury at the end of 2020 and onward. It can be used for various industrial applications such as ship engine exhaust gas measurement.
